Graph Traversal

ptg() (process tree graph) walks process lineage from one process, up to its ancestors, down to its descendants, or both. Use it to see what spawned a suspicious process and what it spawned in turn.

ptg() is a source: it starts the query, so it must come first in the pipeline.

Syntax

ptg(start="<process_guid>", depth=N, direction=forward|backward|both)

Parameter	Default	Description
start (required)		process_guid of the seed process
depth	10	Hops to follow from the seed. Capped at 50.
direction	both	forward for descendants, backward for ancestors, both for each

Each row is one process: timestamp, process_guid, parent_guid, image, parent_image, commandline, computer_name, plus:

Field	Description
_depth	Hops from the seed (0 is the seed)
_path	GUIDs from the seed to this process, joined by >
group_size	How many identical processes the row stands for (1 for a single process)
group_first, group_last	When the first and last of them started, for group_size above 1

Siblings with the same parent, image and command line (user folders, GUIDs and long numbers ignored) are returned once, as the earliest of them, with a count: a process polling cmd /C "tasklist" every two seconds is one row, not thousands. A child that only one of them started still appears, under that row. The tree holds up to 1,000 rows standing for up to 500,000 processes; past that the result notes that it was truncated.

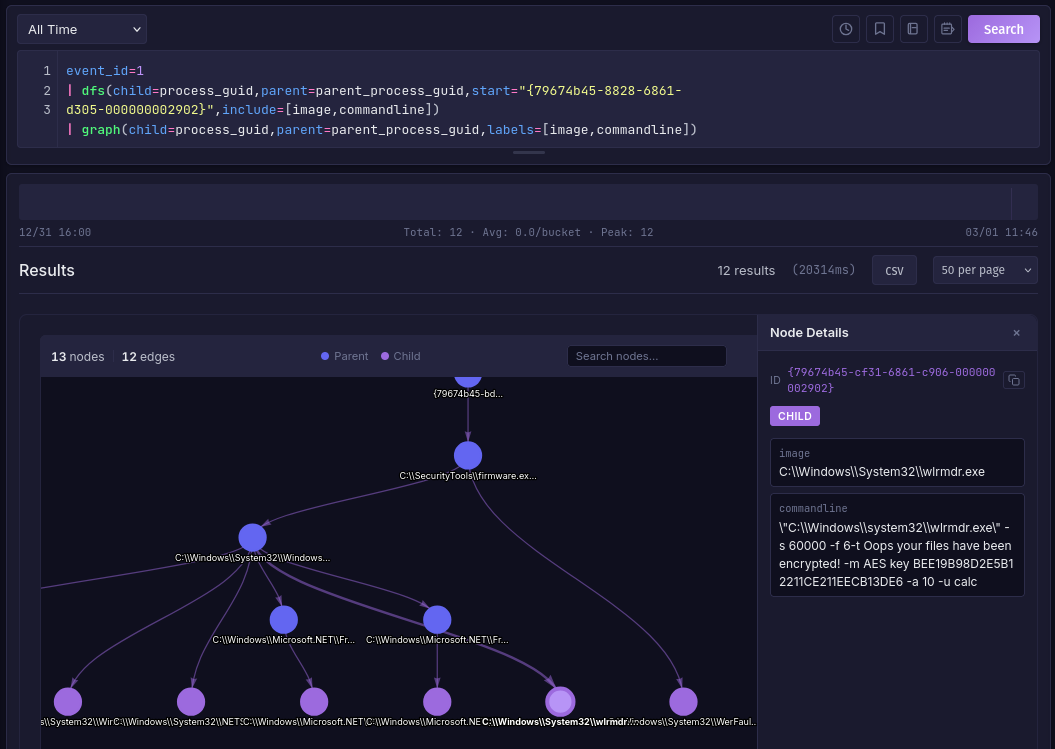

Pipe to pgraph() to draw the tree as a process map instead of a table.

Requirements

ptg() reads proc_lineage, a table filled at ingest from events with bifract_category="process_creation" and a non-empty process_guid. Normalize your EDR source to that category and to the fields process_guid, parent_process_guid, image, parent_image, commandline and computer_name.

Warning

Only start=, the time range and the fractal scope the tree. After ptg(), only _depth/_path filters, pgraph() and graph() are allowed; anything else is an error. Filters before ptg() are ignored. Processes outside the selected time range are silently left out, so set the range to cover the whole investigation.

ptg() reads live data only; it is not available over archived data.

Examples

The full tree around a process, drawn as a process map:

ptg(start="{GUID}") | pgraph()

Ancestors only, up to 20 levels:

ptg(start="{GUID}", direction=backward, depth=20)

Descendants within three levels:

ptg(start="{GUID}", direction=forward) | _depth <= 3

Beyond the spawn tree

ptg() covers process creation only. For file, network and DNS activity around the tree, anomaly scoring and cross-tree links, use pgr(): see Provenance Graph.
